技术参数Technical Parameter
设备型号	Equipment model	JX-WSDJ750
主要材质	Main materials	304不锈钢
底座骨架	Base frame	45#厚钢板
电压/频率	Voltage/Frequency	380V/50HZ
主传动电机功率	Main transmission motor power	55KW
液压站功率	Hydraulic station power	1.5KW
变频器	Frequency converter	55KW（深圳孚瑞肯）
电器/开关	Electrical appliances/switches	施耐德/西门子
双层料桶	Double layer bucket	φ1220mm；H780mm
		内厚6mm、外度1.5mm
		保温：聚氨酯发泡
桨叶转速	Blade speed	0~300r/min（变频可调）
工作高度	Working height	2700mm
打浆能力	Beating ability	750KG/桶/次
整机重量	Overall weight	≈4500KG

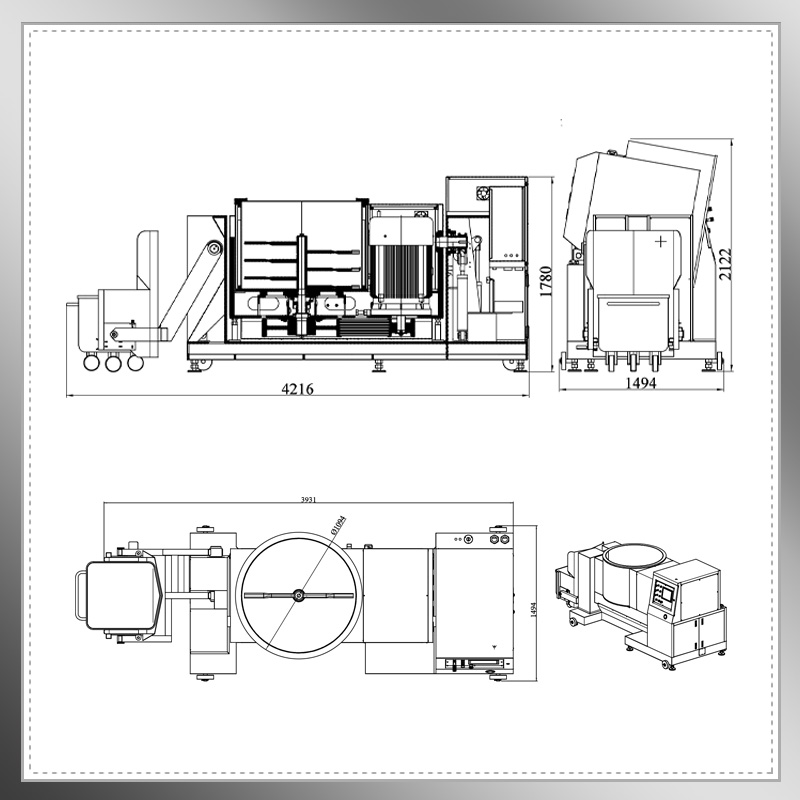

外形尺寸	Overall dimensions	L3750×W1500×H1780mm
电气单元配置Electrical configuration
主传动电机	Main drive motor	永华/Yonghua
变频器	Frequency converter	孚瑞肯/Furiken
液压电机	Hydraulic motor	广榕信/Guangrong Letter
减速总成	Reduction assembly	浦成/Pucheng
可编程控制器	Programmable controller	西门子/Siemens
扩展模块	Expansion module	西门子/Siemens
触摸屏	touch screen	海为/haiwell
交流接触器	AC contactor	施耐德/Siemens
开关旋钮	switch knob	施耐德/欧姆龙Schneider/Omron
热过载保护器	Thermal overload protector	施耐德/Schneider
电源供应器	Power supply unit	M/W
接近传感器	Proximity sensor	欧姆龙/Omron
报警灯	Alarm lamp	施耐德/Schneider
指示灯	indicator light	施耐德/Schneider
主令/选择开关	Master/selector switch	施耐德/Schneider
中间继电器	Intermediate relay	施耐德/Schneider

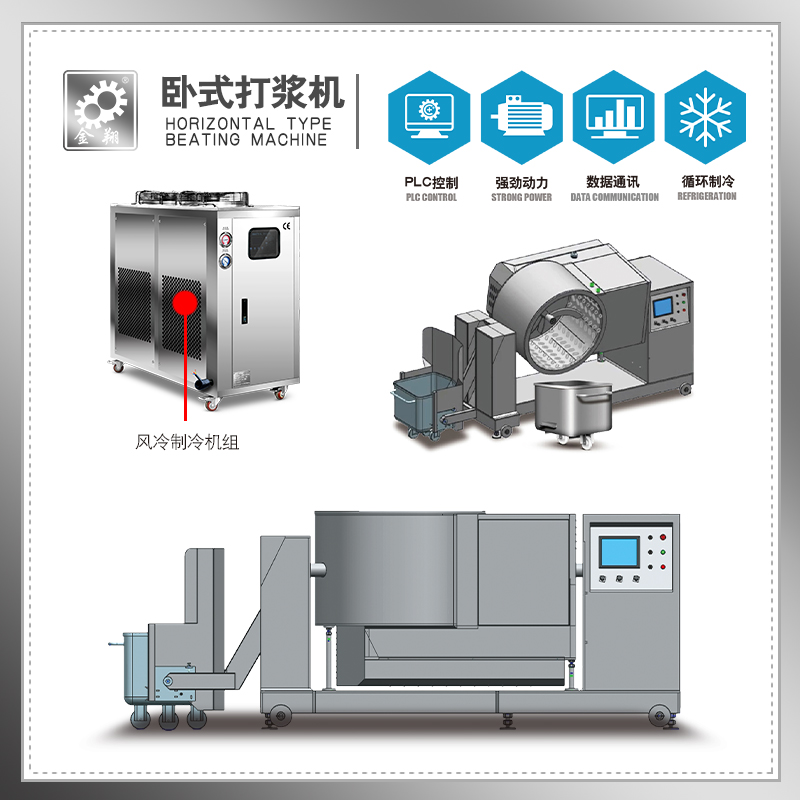

▇ 产品简介：

本产品整体采用SUS304不锈钢外壳，底座框架材料内芯栓16厚，外壳16厚钢板拼焊，料桶采用双层；聚氨酯发泡填充保温模式，使桶内浆料温度不容易上升，使其打出的浆料口感效果更好，可打各种产品浆体、鱼制品、肉制品，配55kw重载变频器调速；液压升降自动上料、出料功能，操作简单，使用方便，设计合理，工作安全，外观美观大方，可根据用户需求定制各种不同规格的打浆机。

Comprehensive description:

<section style="margin: 0px 0px 24px; padding: 0px; outline: 0px; text-align: justify; color: rgba(0, 0, 0, 0.9); line-height: normal; letter-spacing: 0.54px; font-family: system-ui, -apple-system, BlinkMacSystemFont, "Helvetica Neue", "PingFang SC", "Hiragino Sans GB", "Microsoft YaHei UI", "Microsoft YaHei", Arial, sans-serif; font-size: 17px; white-space: normal; max-width: 100%; box-sizing: border-box !important; overflow-wrap: break-word;">

This product adopts a SUS304 stainless steel shell as a whole, with a 16 thick inner core bolt for the base frame material. The shell is welded with 16 thick steel plates, and the material barrel is double-layered; Polyurethane foam filling insulation mode ensures that the temperature of the slurry in the barrel does not easily rise, resulting in a better taste effect of the slurry produced. It can be used for various product slurries, fish products, and meat products, and is equipped with a 55kw heavy-duty frequency converter for speed regulation; The hydraulic lifting automatic feeding and discharging function is simple in operation, convenient in use, reasonable in design, safe in job security, and beautiful in appearance. Various specifications of beaters can be customized according to user needs.
